L5P CP3 Conversion Kit 14mm

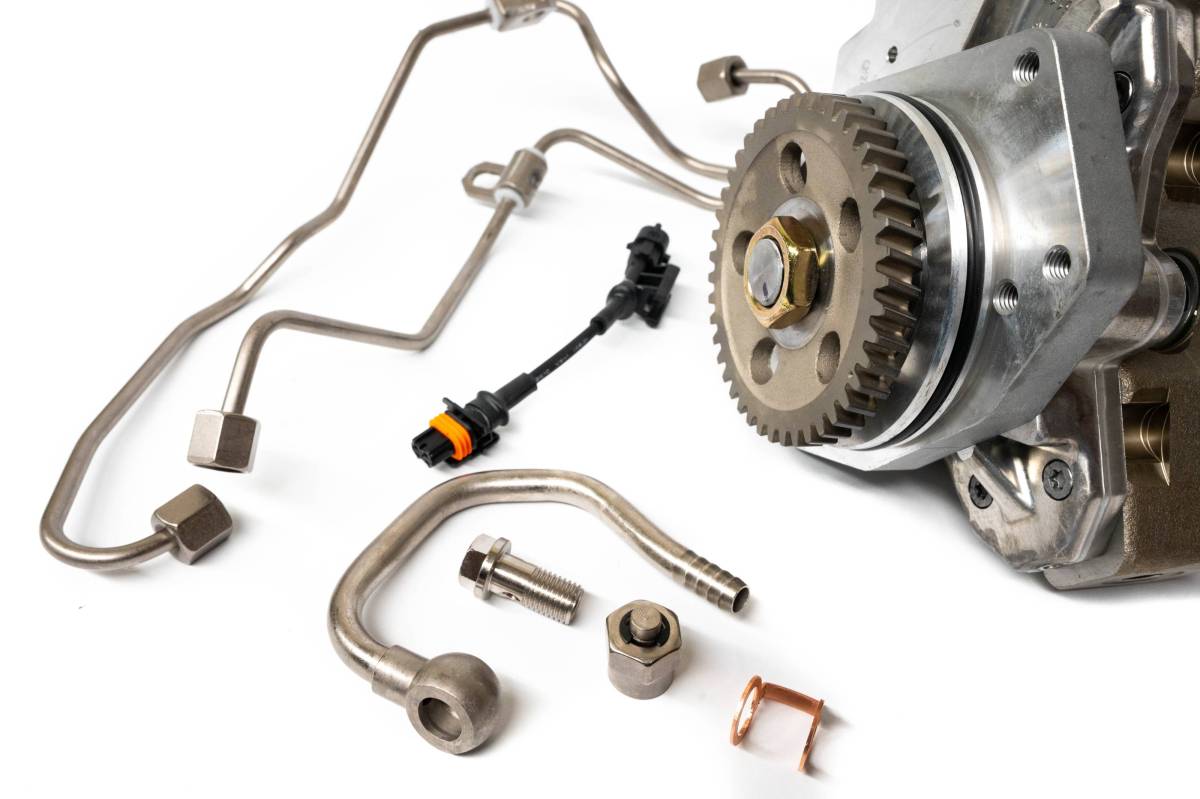

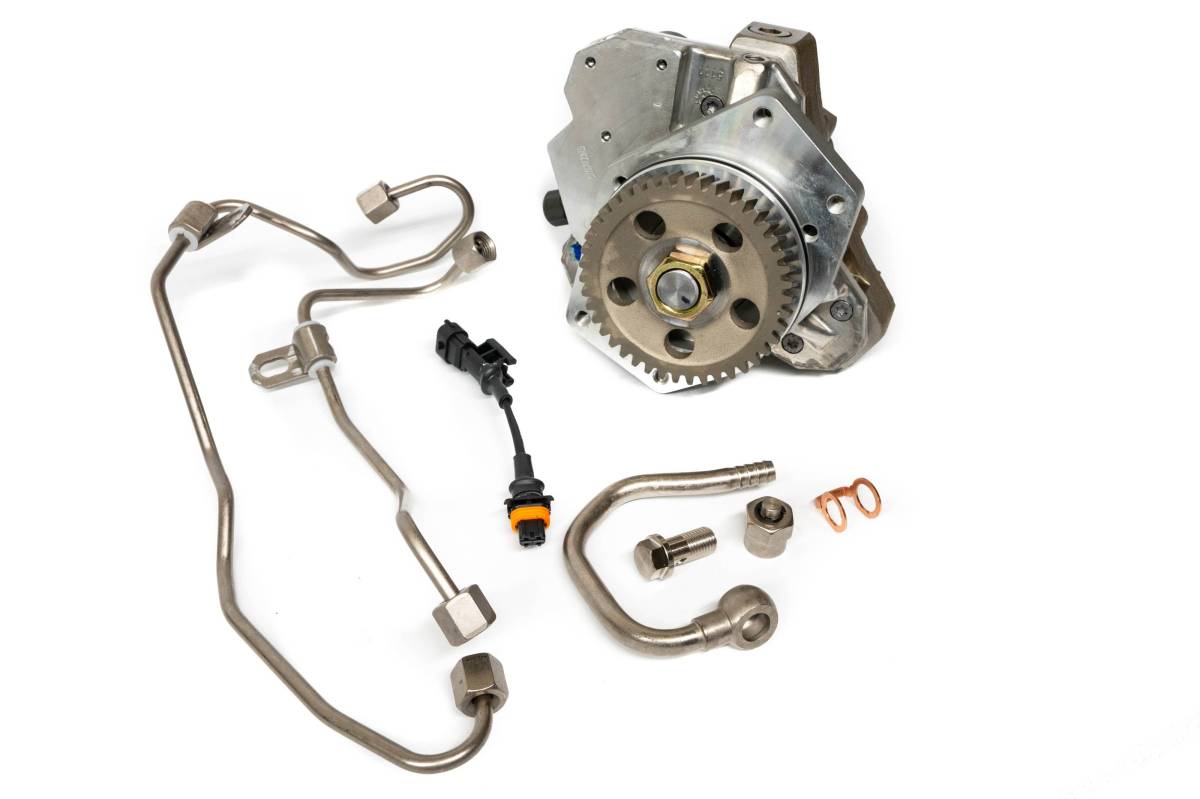

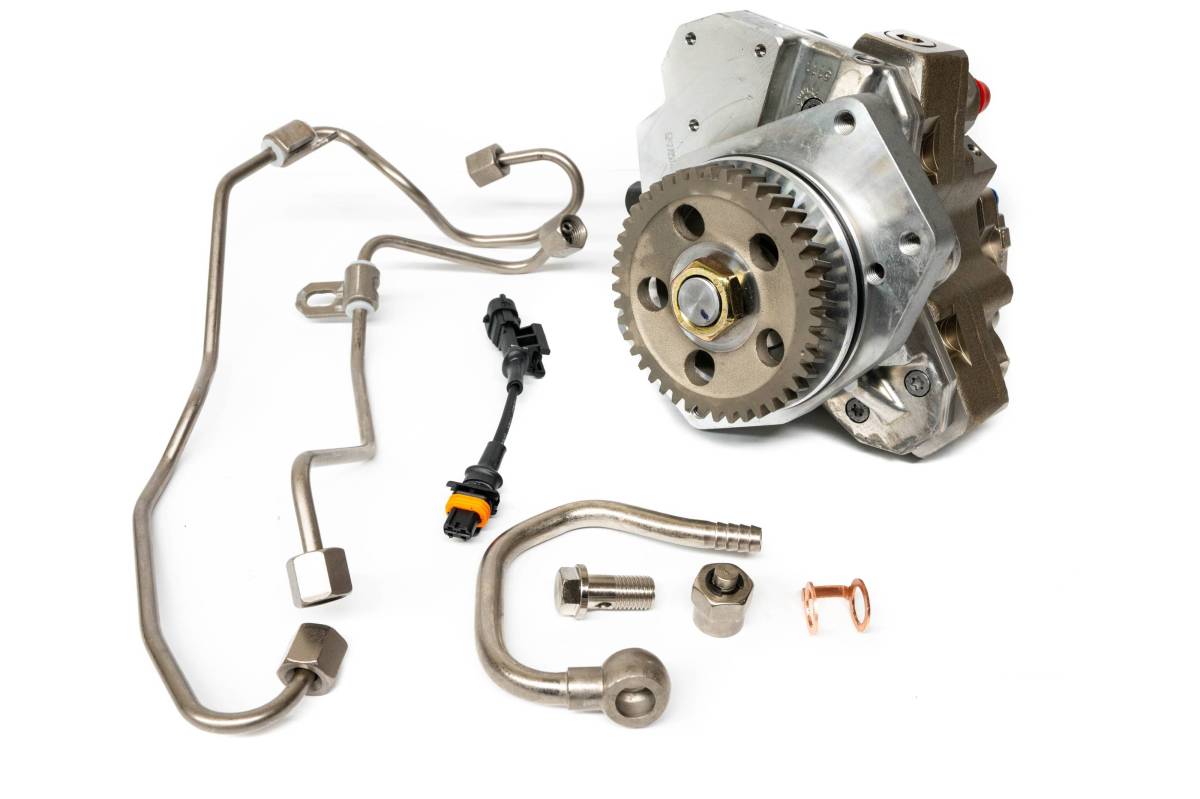

Dan's Diesel Performance 14mm L5P CP3 conversion kit. Ideal for competition trucks with built engines and very large injectors.  Kit includes the following.

• DDP custom 14mm stroker CP3 pump.
• CP3 mounting flange and drive gear already installed.
• Both DS and PS nickel treated high pressure feed lines with anti-vibration brackets.
• Billet quick connect feed fitting.
• 3/8" nickel treated return line, banjo bolt and seal.
• DS rail port cap.
• FCA extension harness.

The Dan's Diesel Performance 14mm CP3 pump is built from a brand new 6.7 based CP3. Features of our 14mm CP3 include:

• 14mm cam shaft with a hardness rating of 60 HRC for anti-wear and strength properties.
• Precision made DLC tappets.
• Improved tappet springs that are 25% stronger and longer to support high RPM applications.
• New DLC polygon cam follower.
• High flow plunger inlet valves and caps.
• High flow gear pump.
• High flow metering unit comes standard to allow for max pump flow throughout the rpm range while maintaining a smooth fuel flow curve for good street manners and easy tunability.
• Flow sheet with duty cycle points included.
• 2- Year unlimited mile warranty against manufacturer defects.

We recommend a 240 GPH lift pump with a boost compensated regulator.  Supply pressure of 6-8 psi at idle and 25-30 psi at full throttle is ideal.
